LiHCH TP
À³¥Î¤Î´yz
LiHCH TP¹qÆl¾A¦X©T©w¦w¸Ë©ÎÆF¬¡À³¥Î©ó§C¾÷±ñÀ³¤O¡AµL¾÷±ñ©Ô¤O©Î²ü¸ü¡A«D°Ê¤O±±¨îªº¥i²¾°Êªº·FÀê©Î¼éÀ㪺Àô¹Ò¤¤¡C±`¥Î©ó«H¸¹ªº³s
±µ¡A´ú¶q¡A±±¨î¡A©I¥s©MÂù¦V¹ïÁ¿«Y²Î¡A®ÉÄÁ¸Ë¸m¡A¹q¤lºÙ«³]³Æ©M¿ì¤½¹q¾¹ªº³s±µ¡Cªý¿UªºµL³¿¼ö¶ì©Ê¥~®M¡A¦bµo¥Í¤õ¨aªº±¡ªp¤U¡A
µL»G»k©Ê©Î¦³¬r®ðÅéÄÀ©ñ¡C³q±`¦w¸Ë¦b¤½¦@«Ø¿vª«¡A¹êÅç«Ç¡A¥æ©ö©M¹B¿é¤¤¤ß¡CÂùµ±ªº½u¹ï´î¤Ö¤F¹qÆlªº¤º³¡¦êÂZ¡A¦P®ÉÁá¿ü»É½s´«Ì½ª
¥i¨¾¤î¹q®ð©M¹qºÏ¦êÂZ¡A½T«O«H¸¹©M¼Æ¾Ú¶Ç¿é¡C¦¹¹qÆl¤£¤¹³\¤á¥~¨Ï¥Î¡C
¼Ð·Ç¤Î»{ÃÒ
VDE 048-267, VDE 0812, CE §CÀ£73/23/EEC©M93/68/EEC«ü¥O, ROHS»{ÃÒ

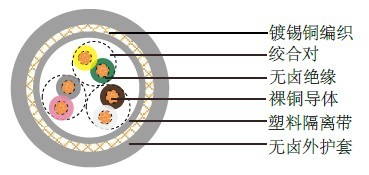

¹qÆlµ²ºc
- »r»É¾ÉÅé
- ¿í´`DIN VDE 0295 cl.5, IEC 60228 cl.5
- µL³¿µ´½t
- ¦â±m½s½X¿í´`DIN 47100¡A¦ý¨S¦³ÃC¦â«´_
- ½uªäÁ`µ±
- ¶ì®Æ¹jÂ÷±a
- 85%Áá¿ü»É½s´
- µL³¿¥~Å@®M
§Þ³N¯S©Ê
- ¤u§@¹qÀ£: 250 V
- ´ú¸Õ¹qÀ£: 1200 V
- ¤pÅs¦±¥b®|: 5 x ?
- À³¥Î®Éªº¤u§@·Å«×: -5? C ¡ã +70? C
- ÀRºA®É¥i©Ó¨üªº·Å«×: -40? C ¡ã +70? C
- ªý¿U: IEC 60332.1-2
- ¤¬®e: ¾ÉÅé¹ï¾ÉÅé: 80 nF/km
¾ÉÅé¹ï«Ì½ª: 120 nF/km
- µL³¿: DIN EN 50267/IEC 60754
- ·Ï±K«×: DIN EN50268/IEC 61034
- µ´½t¹qªý: 20 M£[ x km
¹qÆl°Ñ¼Æ
½u³W | ªä¼Æ x ¾ÉÅé | ¼ÐºÙ¥~®| | »Éªº«¶q | ½uÆl«¶q |
26(18/38) | 2x2x0.14 | 5.2 | 19.1 | 34 |
26(18/38) | 3x2x0.14 | 5.7 | 23.4 | 41 |
26(18/38) | 4x2x0.14 | 6.5 | 27.8 | 53 |
26(18/38) | 5x2x0.14 | 7.0 | 31.9 | 60 |
26(18/38) | 6x2x0.14 | 7.2 | 36.2 | 68 |
26(18/38) | 8x2x0.14 | 7.8 | 43.4 | 80 |
26(18/38) | 10x2x0.14 | 8.9 | 50.6 | 100 |
26(18/38) | 12x2x0.14 | 9.7 | 58.2 | 111 |
26(18/38) | 16x2x0.14 | 10.5 | 71.4 | 136 |
26(18/38) | 18x2x0.14 | 11.1 | 92.8 | 159 |
26(18/38) | 20x2x0.14 | 11.7 | 98.1 | 164 |
26(18/38) | 24x2x0.14 | 12.3 | 114.8 | 203 |
26(18/38) | 25x2x0.14 | 12.8 | 117.5 | 207 |
26(18/38) | 28x2x0.14 | 13.1 | 125.7 | 221 |
26(18/38) | 30x2x0.14 | 13.8 | 135.6 | 237 |
26(18/38) | 36x2x0.14 | 14.6 | 157.8 | 275 |
26(18/38) | 40x2x0.14 | 14.9 | 168.2 | 296 |
26(18/38) | 44x2x0.14 | 16.3 | 205.9 | 348 |
26(18/38) | 52x2x0.14 | 17.0 | 228.1 | 388 |
26(18/38) | 61x2x0.14 | 18.3 | 263.2 | 443 |
24(14/34) | 2x2x0.25 | 5.7 | 24.9 | 42 |
24(14/34) | 3x2x0.25 | 6.4 | 31.4 | 55 |
24(14/34) | 4x2x0.25 | 7.8 | 44.9 | 81 |
24(14/34) | 6x2x0.25 | 7.9 | 50.7 | 85 |
24(14/34) | 8x2x0.25 | 9.0 | 62.1 | 109 |
24(14/34) | 10x2x0.25 | 9.8 | 73.9 | 132 |
24(14/34) | 12x2x0.25 | 10.9 | 101.9 | 160 |
24(14/34) | 16x2x0.25 | 11.9 | 126.8 | 195 |
24(14/34) | 18x2x0.25 | 12.7 | 136.6 | 222 |
24(14/34) | 24x2x0.25 | 14.2 | 170.3 | 270 |
22(7/30) | 2x2x0.34 | 6.8 | 31.5 | 57 |
22(7/30) | 3x2x0.34 | 7.4 | 39.7 | 72 |
22(7/30) | 4x2x0.34 | 8.8 | 49.8 | 99 |
22(7/30) | 5x2x0.34 | 9.5 | 58.5 | 116 |
22(7/30) | 6x2x0.34 | 9.7 | 65.1 | 128 |
22(7/30) | 8x2x0.34 | 10.6 | 80.7 | 144 |
22(7/30) | 12x2x0.34 | 13.4 | 133.1 | 225 |
22(7/30) | 16x2x0.34 | 14.6 | 165.0 | 280 |
22(7/30) | 18x2x0.34 | 15.1 | 178.3 | 306 |
22(7/30) | 24x2x0.34 | 17.6 | 255.1 | 415 |
20(16/32) | 2x2x0.5 | 7.2 | 39.3 | 66 |
20(16/32) | 3x2x0.5 | 7.9 | 50.1 | 84 |
20(16/32) | 4x2x0.5 | 9.6 | 82.0 | 146 |
20(16/32) | 6x2x0.5 | 10.4 | 86.0 | 146 |
20(16/32) | 8x2x0.5 | 10.9 | 111.5 | 166 |
20(16/32) | 10x2x0.5 | 13.2 | 146.5 | 229 |
20(16/32) | 12x2x0.5 | 14.4 | 175.7 | 268 |
20(16/32) | 16x2x0.5 | 16.3 | 241.3 | 368 |
20(16/32) | 18x2x0.5 | 16.9 | 261.0 | 399 |
20(16/32) | 20x2x0.5 | 16.9 | 280.2 | 418 |
20(16/32) | 24x2x0.5 | 19.0 | 330.4 | 491 |
18(24/32) | 2x2x0.75 | 8.5 | 52.4 | 92 |
18(24/32) | 3x2x0.75 | 9.4 | 69.4 | 112 |
18(24/32) | 4x2x0.75 | 10.9 | 108.0 | 179 |
18(24/32) | 6x2x0.75 | 12.5 | 136.5 | 218 |
18(24/32) | 8x2x0.75 | 14.9 | 180.0 | 305 |
18(24/32) | 12x2x0.75 | 17.1 | 261.2 | 385 |
18(24/32) | 16x2x0.75 | 18.6 | 329.9 | 482 |
18(24/32) | 18x2x0.75 | 19.3 | 369.3 | 535 |
18(24/32) | 24x2x0.75 | 21.8 | 469.2 | 661 |
17(32/32) | 2x2x1.0 | 10.5 | 84.0 | 142 |
17(32/32) | 3x2x1.0 | 10.6 | 96.0 | 173 |
17(32/32) | 4x2x1.0 | 11.5 | 121.0 | 212 |
17(32/32) | 5x2x1.0 | 12.0 | 161.0 | 266 |
