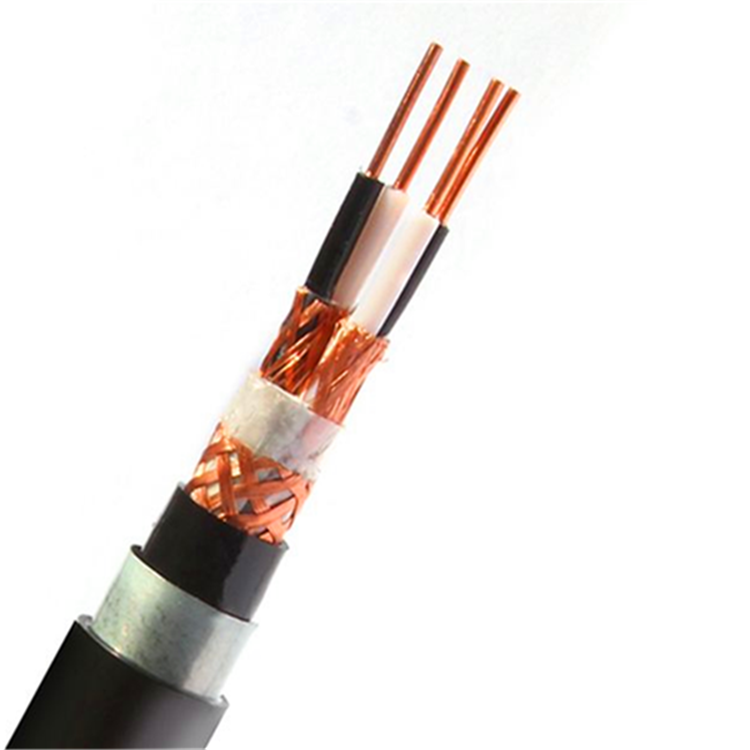

ZR-DJFPFP 高溫計算機控制電纜
電子計算機電纜/屏蔽電纜也是計算機控制電纜用於連接電子計算機外圍設備至生產現場，以及各種電器、儀表、自動裝置等需要的屏蔽控制電纜.
係列代號
Series Code
DJ
計算機控制電纜 Computer control cables
項目
Item
代號
Code
代號含義
Code Indication
絕緣材料
Insulation material
V
聚氯乙烯、阻燃聚氯乙烯或低鹵低煙阻燃聚氯乙烯
PVC、flame-proof PVC or low halogen and low smoke flame-proof PVC
Y
聚乙烯或阻燃聚乙烯 PE or Flame-proof PE
YJ
交聯聚乙烯 XLPE
護套材料
Sheath material
V
聚氯乙烯、阻燃聚氯乙烯或低鹵低煙阻燃聚氯乙烯
PVC、flame-proof PVC or low halogen and low smoke flame-proof PVC
Y
無鹵低煙阻燃聚烯烴(YJ-交聯型)
Halogen-free and low smoke flame-proof polyolefin (YJ - cross-linked)
屏蔽材料
Shield material
P
銅線或鍍錫銅線編織 Copper wire or tin plated copper wire braid
P3
鋁塑復合帶 Composite aluminium-plastics tape
P2
銅帶或銅塑復合帶 Copper tape or composite copper-plastic tape
鎧裝材料
Armour material
12
聯鎖鋼帶鎧裝聚氯乙烯類護套 Interlocked steel tape armour PVC sheath
13
聯鎖鋼帶鎧裝聚乙烯類護套 Interlocked steel tape armour PE sheath
22
繞包鋼帶鎧裝聚氯乙烯類護套 Steel tape wrapped armour PVC sheath
23
繞包鋼帶鎧裝聚乙烯類護套 Steel tape wrapped armour PE sheath
32
纏繞鋼絲鎧裝聚氯乙烯類護套 Winding steel wire armour PVC sheath
33
纏繞鋼絲鎧裝聚乙烯類護套 Winding steel wire armour PE sheath
92
編織鋼絲鎧裝聚氯乙烯類護套 Braided steel wire armour PVC sheath
93
編織鋼絲鎧裝聚乙烯類護套 Braided steel wire armour PE sheath
52
聯鎖鋁帶或鋁合金帶鎧裝聚氯乙烯類護套
Interlocked aluminium or aluminium-alloy tape armour PVC sheath
53
聯鎖鋁帶或鋁合金帶鎧裝聚乙烯類護套
Interlocked aluminium or aluminium-alloy tape armour PE sheath
其它
遇其它護套時，鎧裝表示方法同上，護套以“4”表示。如編織鋼絲鎧裝氟塑料護套表示為“94”。
If the sheath is made from other material, the armour is indicated in the same way as above. Sheath is signified by “4”. For example, the braided steel wire armour fluoroplastic sheath may be indicated as “94”.
耐熱等級
Heat-resistant degree
70
工作溫度為70℃(省略)
The highest operating temperature is 70℃(omitted)
90
工作溫度為90℃
The highest operating temperature is 90℃
105
工作溫度為105℃
The highest operating temperature is 105℃
導體種類
Conductor Type
/
單股導體
Single thread conductor
R
多股絞合導體
Multiple threads stranded conductor
規格
Specification
芯數×導體線芯標稱截面mm2 或對數×2×導體線芯標稱截面mm2
No. of cores (or No. of pairs×2)×Standard cross section of conductor mm2
